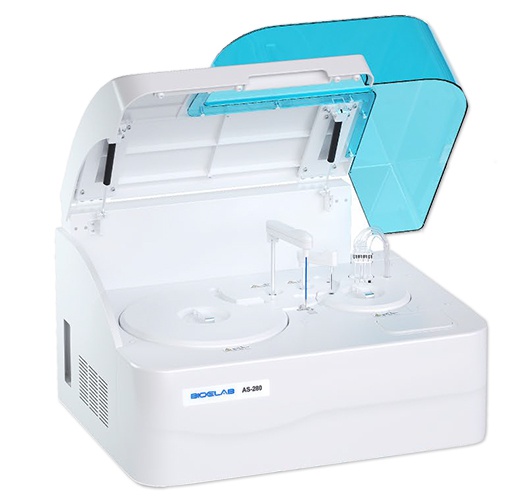

Automatic biochemical analyzer BioElab AS-280

BioElab AS-280
Fully automatic biochemical analyzer
200 tests per hour, 2 reagents

• Constant speed of 200 tests per hour Autonomous probe

• Autonomous mixer 80 reagent positions

• 40 sample positions

• 44 reaction cuvettes made of amorphous optical plastic 4-stage double washing system

Automatic biochemical analyzer BioElab AS-280

Multifunctional precise sampling probe

• External and internal polishing of mirrors, external and internal washing of the probe

• Special sampling probe equipped with a sensitive liquid sensor and timely feedback on reagent and sample residues

• Collision protection, automatic probe depth adjustment

Excellent mixer design

• Mixer with Teflon coating. No water droplet fall (reduced carryover)

• Excellent mixing effect with standard mixing procedure

High-precision ceramic syringe

• Constant ceramic piston

• Accurate dosing up to 0.1 microliter

Reagent and sample tray

• 80 reagent positions

• 40 sample positions

• Continuous cooling system with Peltier plate inside, 24 hours a day, 2°C - 14°C

• Barcode reader

Reaction tray

• 44 reaction cuvettes

• Reaction cuvette volume up to 150 µl

• Stable and accurate temperature (37 ± 0.1°C) for reaction

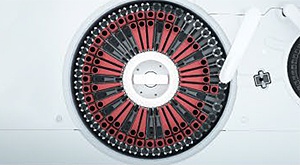

Reaction tray as-280

Modern operating system

• User-friendly software interface

• Automatic sample dilution (decrease, increase, normal)

• Automatic verification and warning of reaction result, automatic verification of calibration result, protocol of warning signals

• Linear and nonlinear calibration, multichannel calibration up to 8 points

• Quality control applied by Westgard, L-T, cumulatively

Technical specifications

General information
Analyzer type	Open access, "open" system
Testing speed	Constant 200 tests/hour (single reagent or dual reagent)
Testing principle	Colorimetric method, turbidimetry
Testing method	1 point, 2 points, fixed time, Kinetics
Calibration type	Linear and nonlinear
Sample module
Sample tray	40 sample positions
Sample tube	Micro and standard tube (Ø 12-13) mm * (25-100) mm
Sample volume	2-30 µl, step 0.1 µl
Sampling probe	Liquid surface detection, timely tracking of liquid volume. Avoiding collisions
Sample barcode reader
Reagent module
Reagent tray	80 reagent positions (40 for R1 & 40 for R2), Continuous cooling system with Peltier plate inside, 24 hours a day, 2°C - 14°C, open system, works with any reagents
Reagent volume	20-300 µl, step 1 µl
Reagent needle	Liquid surface detection, timely tracking of liquid volume. Avoiding collisions
Reagent barcode reader
Reaction module
Reaction tray	44 high-quality cuvettes. Reaction cups made of amorphous optical plastic, ideal light transmission coefficient
Reaction volume	150 – 350 µl
Reaction time	10 minutes
Temperature	Incubation system with Peltier plate, reaction temperature (37°C ± 0.1°C)
Mixing system
Mixer	Oar type, effective carryover prevention
Optical system
Light source	Halogen lamp
Wavelength	340 nm; 405 nm; 450 nm; 505 nm; 546 nm; 578 nm; 630 nm; 700 nm (there are 4 more options)
Absorption range	0-4.0 Abs
Resolution	0.0001 Abs
Operating system
Operating system	Windows XP, 7, 8, and 10
Data processing	Automatic calibration, test combination, effective reagent time management, serum index, recognition of the entire process, linear enzyme expansion, blank subtraction, dirty cuvette memory, cross-contamination prevention, patient information retention and entry of patient-related information, automatic audit report, fuzzy data query, report statistics and printing, reference range signal classification, alarm information classification, user access level management.
Report printing	6 formats available, support for custom template
Interface	Network, TCP/IP
Instrument
Power supply	AC 110/220V ± 10%, 50/60 Hz, 650 W
Water consumption	8 l/hour (maximum)
Dimensions (LWH)	745 mm x 540 mm x 530 mm
Weight	45.4 kg
