ІМУНОХЕМІЛЮМІНЕСЦЕНТНИЙ АНАЛІЗАТОР (ХЛІА/CLIA) HOKAPI AE-180
WIDE MENU OF ANALYSIS
Price on request
WIDE RANGE OF TESTS
| Oncomarkers | Infectious Diseases | Thyroid Gland | Fertility | Bone Remodeling Markers |
|---|---|---|---|---|
| CEACE | HBsAg (qualitative determination) | T3CE | TCE | BAP |
| AFPCE | Anti-HBs (qualitative determination) | T4CE | PCE | PTH |
| PSACE | HBeAg (qualitative determination) | FT3CE | E2CE | N-BGP |
| fPSACE | Anti-HBe (qualitative determination) | FT4CE | LHCE | 25-OHVDCE |
| PAP | Anti-HBc (qualitative determination) | TSHCE | PRLCE | CT |
| cPSA | Anti-HCV | TGCE | FSHCE | Autoimmunity |
| CA50CE | Anti-TPCE | Anti-TGCE | uE3 | |
| CA242CE | HIVAg/Ab | Anti-TPOCE | HCGCE | Anti-PR3 |
| CA125CE | Anti-HIV | Anti-TSHR | ß-HCGCE | Anti-CCP |
| CA19-9CE | Anti-HEV IgGCE | Liver Fibrosis | PAPP-A | Anti-MPO |
| CA15-3CE | Anti-HEV IgMCE | AMH* | Anti-dsDNA IgG | |
| CA72-4CE | SARS-CoV-2 IgM*CE | Pill NP | Glycometabolism | Anemia |
| CYFRA21-1CE | SARS-CoV-2 IgG*CE | CIV | ||
| NSECE | Cardiological Markers | HA | INSCE | FerCE |
| SCCCE | LN | C-PCE | VB12 | |
| HE4CE | MYOCE | CG | Inflammation | FOL* |
| PGICE | CK-MBCE | Arterial Hypertension | ||
| PGIICE | cTnl | PCT | ||
| ProGRPCE | Hs cTnlCE | ALD | CRPCE | |
| S100 | NT-proBNPCE | Renin | IL-6CE | |
| ß2-MGCE | D-dimerCE | Al (angiotensin) | ||
| HER-2/neuCE | All (angiotensin) | |||
| TNF-a |
* In development
| HIGH QUALITY OF TESTS The test menu incorporates the latest achievements of the QUALITY department and research and development of the company «BioMerieux» (bioMérieux) Flagship panel of oncomarkers (26+) |
TECHNICAL SPECIFICATIONS
| Type of Equipment | Cabinet-format Analyzer |
| Operating Principle | Direct chemiluminescent immunoassay based on acridine ester |
| Main Characteristics | Up to 120 tests/hour Analysis time <35 min Coefficient of variation (CV) of the system <5% Full automation Mean time to failure >220 days |
| Sample Compartment | Holds 144 samples on board Analysis modes: random, batch, and STAT — available with continuous loading Barcode scanning of samples |
| Reagent Compartment | Holds 20 reagent positions on board Temperature maintained within 2–8 °C Automatic mixing of magnetic particles Loading of reagents during testing |
| Sample/Reagent Delivery Needle | Dual needles for separate delivery of reagent and sample Teflon-coated needle; internal and external cleaning provided Avoidance of carryover effect from previous sample Fluid level detection |
| Reagent Features | Integrated kit containing reagent and calibrators Predefined standard curve calibrated at 2 points Stability of working curve for 2 weeks Stability of opened reagent: 60 days Packaging sizes: 50 tests/100 tests |
| Operator-Free Time | Up to 450 tests or 4.5 hours |
| PC Operating System | Microsoft Windows 10 |
| Laboratory Information System (LIS) Connection Mode | Bidirectional LIS |
| Size and Weight | 180 (L) * 80 (W) * 160 (H) cm, 360 kg |
| Power Supply | 900 VA, 220 V AC, 50/60 Hz |
| Operating Conditions | Humidity <70%, atmospheric pressure 86–106 kPa Altitude above sea level 400~4000 m, air temperature 10–30 °C |
| Manufacturer | «Suzhou Hokapi Biomedical Engineering Co., Ltd.» Address: Building 4, No. 8, Jinfeng Road, Suzhou, China (Block 4, No.8, Jinfeng Road, Suzhou, China) |
| HOKAPI™ AE-180 | Automatic chemiluminescent immunoanalyzer |
| Catalog Number: | AE18-MA00 0031 |
TECHNOLOGIES AND ADVANTAGES
The HOKAPI™ AE 180 system implements the «FLASH» technology
Direct chemiluminescence technology (CLIA) with solid phase from paramagnetic microparticles and a wide range of tests, including numerous special tests.

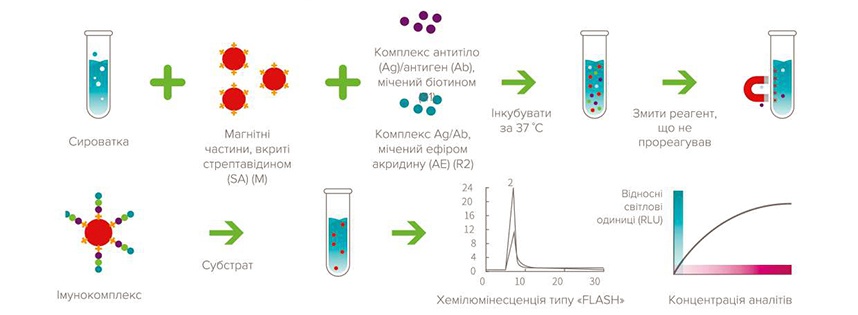

WORKING PRINCIPLE
ADVANTAGES OF IHL
INCREASED SENSITIVITY
Magnetic particles/ Homogeneous immunoassays
• Significant increase in solid phase/liquid phase
EXCELLENT REPRODUCIBILITY
Biotin-avidin system*
• Simplified labeling of the Ag/Ab complex
• Increased binding capacity (SA:biotin = 1:4)
• The biotin-avidin complex has a high affinity constant (106 times higher than that of the Ag/Ab complex)
HIGHER PRODUCTIVITY OF IMMUNOASSAYS
Acridine ester substrate
• Very low background
• Simpler labeling of the Ag/Ab complex/ Proper stability
• Small AE molecule that does not affect the activity of the Ag/Ab complex
• Direct chemiluminescence
HOKAPI™ AE-180 DEVICE CONFIGURATION
 |
CUVETTE COMPARTMENT • Holds 75 cuvettes on board for 450 tests • Loading cuvettes during testing |
 |
SAMPLE COMPARTMENT • Holds 144 samples on board • Analysis modes: random, batch, and STAT — available with continuous loading • Barcode scanning of samples |
 |
SAMPLE / REAGENT DELIVERY NEEDLE • Dual needles for separate delivery of reagent and sample • Teflon-coated needle; internal and external cleaning provided; avoidance of carryover effect from previous sample • Fluid level detection |
|
READING ZONE • Excellent photomultiplier (PMT) • Spectral sensitivity: 300–650 nm • Automatic aspiration of waste liquid after analysis, reducing biological contamination |
 |
REAGENT KIT • Universal design, including a set of reagents and calibrators • Stability of reagent in open state: up to 60 days |
 |
REAGENT COMPARTMENT • Holds 20 reagent positions on board • Temperature maintained within 2–8 °C • Automatic mixing of magnetic particles • Loading of reagents during testing |
|
INCUBATION COMPARTMENT • Temperature control at 37±0.5 °C • Mixing during incubation |
| Up to 120 tests/hour |
| Fully automatic |
| Easy to use Operator-free time — 4.5 hours |
| Reliable technical specifications 10-6 including regarding carryover effect from previous sample |
| Reliability Mean time to failure >220 days |
| CLIA-based technology |
