Semi-automatic urine analyzer (Urilyzer® 500 Pro)
Maneuverable • accessible • accurate
Priceon request
Details
Напівавтоматичний аналізатор осаду сечі Urilyzer® Cell для клінічних лабораторій
Advantages
Price on request
Urilyzer® Cell
fast – accessible – accurate
Advantages
✔ Easy to use
✔ Sample volume ~ 175 µl
✔ Complete measurement cycle in less than 1 minute
✔ Automatic creation of light-field images similar to HPF
✔ Does not require additional reagents
✔ Automatic identification of urine particles
✔ Real-time microscopy capability in manual mode
✔ Connection to middleware, LIS, or urine test strip analyzer
✔ Convenient software for data processing, result validation
and generating comprehensive analytical reports
✔ Suitable for laboratories and medical offices with limited space
Compact. Reliable. Saves time.

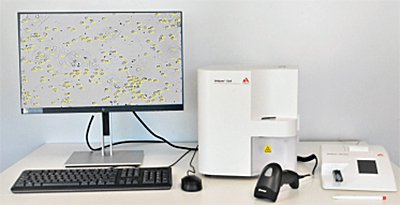

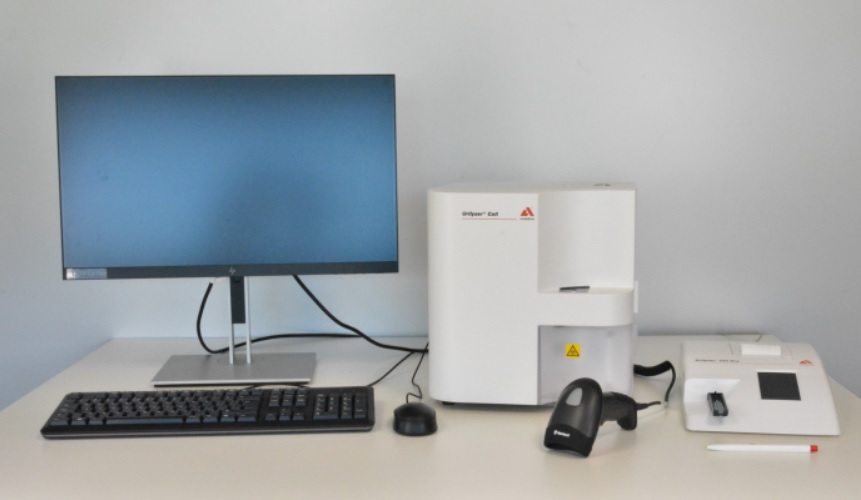

Urilyzer® Cell — is a semi-automatic urine sediment microscopy analyzer for professional use.
Real-time microscopy is possible in manual mode.
The device enhances reproducibility and accuracy of urine sediment analysis based on the "gold standard".
Automation of labor-intensive steps significantly increases productivity.
The compact design and ease of use make Urilyzer® Cell an ideal solution for medical practices and small laboratories.
Technical Specifications of Urilyzer® Cell
| Parameter | Specification |
|---|---|
| Type | Semi-automatic urine sediment analyzer |
| Measurement Technology | Automatic microscopy using cuvette and image processing |
| Analyzed Parameters | Red blood cells (RBC), white blood cells (WBC, WBCc), hyaline casts (HYA), pathological casts (PAT), squamous epithelial cells (EPI), non-squamous epithelial cells (NEC), bacteria (BAC, BACr, BACc), yeast (YEA), crystals (CRY: CaOxm, CaOxd, URI, TRI), mucus (MUC), spermatozoa (SPRM). Additional classes available for manual subclassification |
| Performance | Up to 60 tests/hour |
| Sample Volume | ~ 175 µl |
| Data Storage | Up to 5,000 results (including images) |
| Display | External monitor (included) |
| Interfaces | USB, Ethernet, RS 232 |
| Data Exchange Protocols | LIS2 (ASTM+), HL7 |
| Printer | Optional, external |
| Barcode Scanner | Optional, external |
| Functional Capabilities | Built-in centrifuge, built-in microscope, user management with different access levels, barcode identification, automatic result validation, QC management |
| Interface Languages | German, English, French, Italian, Spanish, Portuguese, Turkish, Polish, Czech, Slovak, Hungarian |
| Dimensions (W×D×H) | 305 × 315 × 325 mm |
| Weight | 10 kg |
| Power Supply | 100–250 V AC / 50–60 Hz |
| Power Consumption | Max. 100 W |
| Operating Conditions – Temperature | +15 °C … +40 °C |
| Operating Conditions – Humidity | 20–80 % at 30 °C (without condensation) |
| Article | ULC060 |
CONSUMABLES
| Name | Art. No |
|---|---|
| Urilyzer® Cell Cuvettes (600 pcs) | ULC001 |
Additional (optional)
| Name | Art. No |
|---|---|
| Pipette (100–1000 µl) | ULC002 |
| Urilyzer® 100 Pro | UL0100Pro |
| Urilyzer® 500 Pro | UL0500Pro |
| Barcode Reader | A93025 |
| RS 232 Connection Cable | A93026 |
