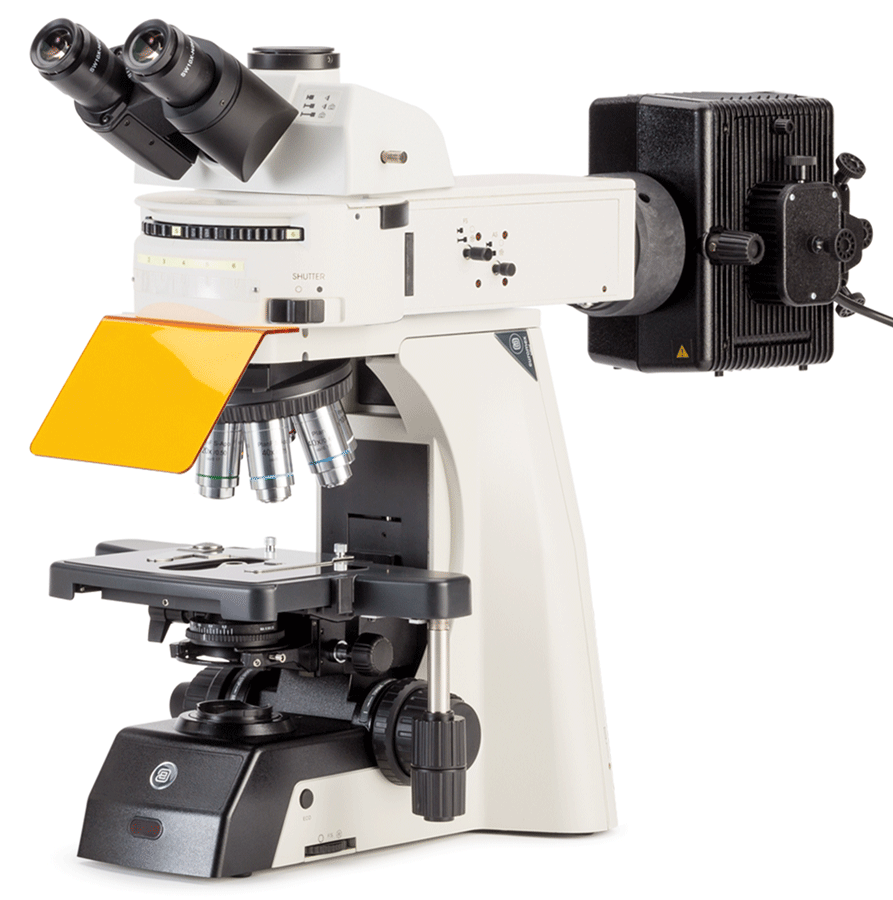

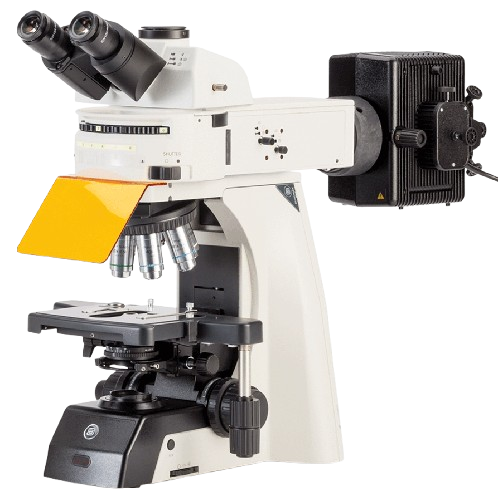

Delphi‑X microscope

The Delphi‑X Observer series of laboratory microscopes is designed specifically for the needs of clinical diagnostic laboratories. The high-quality optical system provides a wide field of view up to 25 mm, while the Plan EIS objectives ensure clear images, accurate color reproduction, and high resolution.

Particular attention is paid to the quality of optics, as well as the ability to expand the functionality of the device through additional modules and accessories.

Thoughtful ergonomics, a sturdy metal body, and reliable mechanical components ensure convenience during daily work and a long service life.

The microscope's revolving nosepiece is designed for 6 objectives with a special anti-reflective and anti-fungal coating on the lenses, which enhances brightness and image quality. The standard magnification range is from 40× to 1000× with the possibility of extending to 2000×.

The body is made of aluminum, making the microscope lightweight and convenient for transportation. Models in the series are equipped with energy-efficient NeoLED illumination with a power of 3 W and smooth brightness adjustment.

The combination of optimal cost, high quality, and energy efficiency makes the Delphi‑X Observer microscopes a universal solution for modern laboratories.

Specifications

✔ Eyepieces with a wide field of view SWF 10x/25 mm or 10x/22 mm with diopter adjustment on both eyepieces (± 5)
✔ Trinocular head type Zidentpof with a tube tilt angle of 30 °
✔ Adjustable interpupillary distance 47-78 mm
✔ Can be complemented with a unique Multihead system for 2, 3, 5, or 10 users (optional)
✔ Revolving nosepiece for six objectives
✔ Plan achromatic objectives 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, and S100x/1.25 oil, corrected for infinity
✔ Objectives: 2x/0.06 WD 7.5 mm, S50x/0.95 (oil immersion) WD 0.19 mm, and S60x/0.80 WD 0.30 mm (optional)
✔ Semi-apochromatic objectives Plan Semi-Apochromatic Fluarex 4x/0.13, 10x/0.30, 20x/0.50, S40x/0.75, and S100x/1.30 (oil immersion) IOS EIS (for pathological and histological laboratories) (optional)
✔ Stage 190 x 152 mm with built-in mechanical stage 78 x 32 mm, oriented for right-handed use
✔ Coaxial coarse and fine adjustment, 100 graduations, 1 µm per graduation, 100 µm per rotation, total travel of about 35 mm
✔ Abbe condenser 0.90/1.25 with a retractable front lens and numerical markings for aperture determination
✔ Height-adjustable phase contrast condenser Zernike N.A. 1.25
✔ Illumination using 3 W NeoLED ™ Kohler
✔ iCare sensor: the microscope's illumination automatically turns off if the user steps away from the workstation, saving energy
✔ Optional camera installation available

Multihead systems with two, three, or five heads and tilted 30° tubes are supplied with eyepieces of ultra-wide field of view SWF 10x/25 mm. Multihead systems with ten heads and tilted 30° tubes have a trinocular main head equipped with ultra-wide field of view eyepieces SWF 10x/25 mm, while the other nine binocular heads are equipped with extended wide field of view eyepieces EWF 10x/22 mm. The Delphi-X Observer™ multihead system with ten heads is supplied without the iCare sensor.
